How to Choose the Best Secondary Glazing for Sash Windows (Compared)

For owners of period properties in Kensington, Chelsea, and Westminster, the traditional timber sash window is a non-negotiable architectural treasure. Yet, behind the elegant aesthetics of Georgian and Victorian craftsmanship lies a persistent physiological intruder: the relentless assault of London's urban noise. Whether it is the low-frequency rumble of a passing bus on the King's Road or the piercing high-frequency wail of an emergency siren, standard single-glazed sashes are essentially transparent to sound.

When "double glazing" is prohibited by conservation officers and standard secondary glazing fails to provide more than a marginal improvement, how do you achieve true acoustic isolation? This report provides a definitive evaluation of the technical requirements for secondary glazing for sash windows, comparing industry-standard solutions against specialist acoustic systems to help you reclaim your home as a sanctuary.

1. The Three Pillars of Acoustic Restoration

To successfully mitigate city noise, an installation must address the physics of sound transmission. Unlike thermal insulation, which relies on thin gas fills, acoustic insulation requires a strategic combination of mass, decoupling, and airtightness.

1.1 The Role of Mass: 10.8mm Acoustic Laminate

In acoustics, mass is the primary enemy of sound waves. Standard secondary glazing often utilizes 4mm or 6mm float glass. While these are sufficient for thermal retention, they lack the density required to block low-frequency noise (the "rumble" of traffic).

We utilize 10.8mm acoustic laminate glass — not merely "thick glass", but a sophisticated composite of two glass sheets bonded by a specialist PVB (polyvinyl butyral) interlayer. This interlayer acts as a viscoelastic damper, absorbing vibrational energy rather than allowing it to pass through the pane.

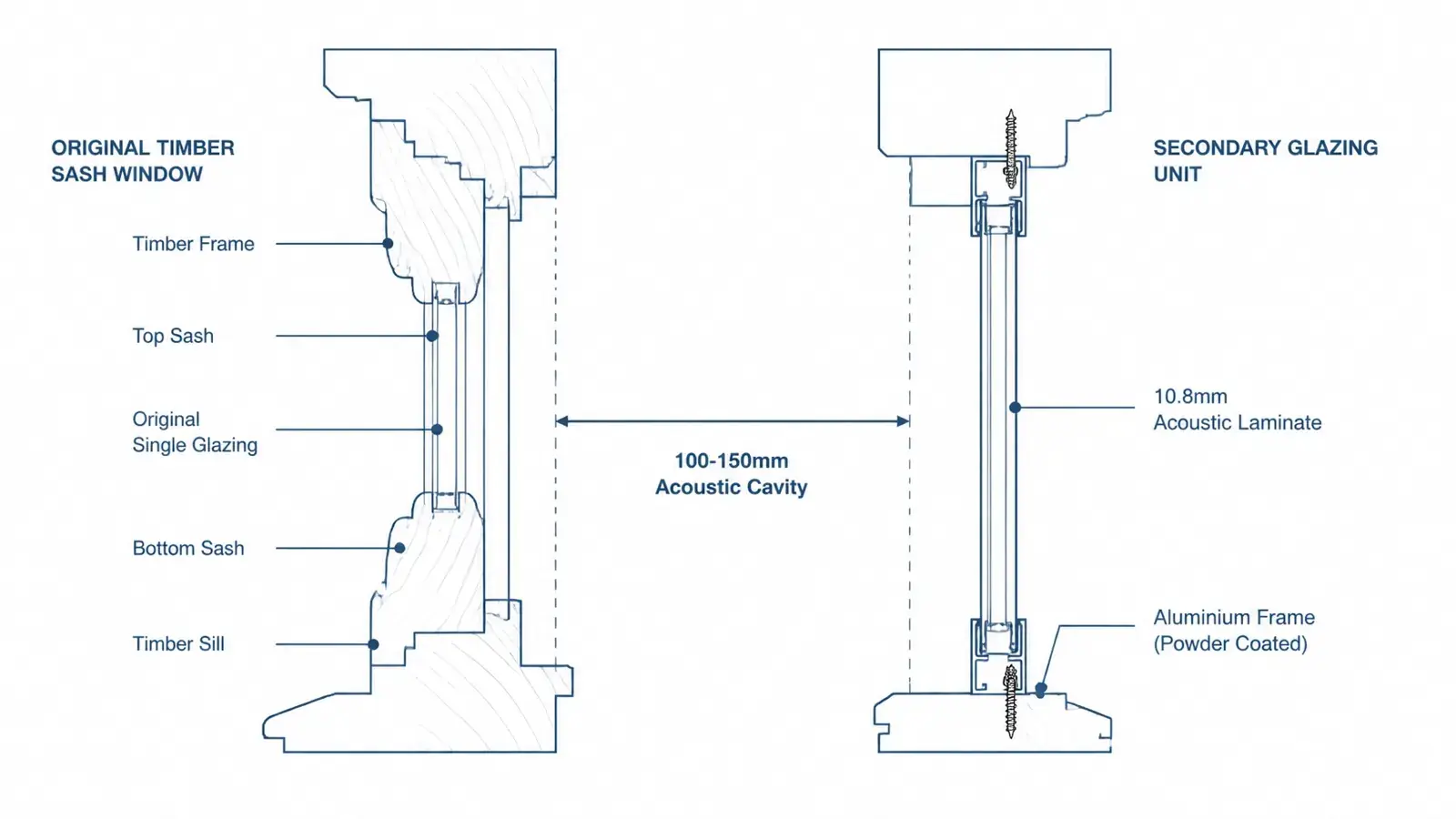

1.2 The Principle of Decoupling: The 100–150mm Air Gap

The most common mistake in acoustic secondary glazing is a shallow air gap. In standard double glazing, the 12–16mm gap is optimized for heat, but for sound, it causes the two panes to act as a "coupled" system, vibrating in sympathy.

To achieve a 54dB noise reduction, the secondary pane must be decoupled from the original window. A precision cavity of 100mm to 150mm creates an acoustic buffer where the sound wave is forced to expend its energy in the trapped air column before hitting the second barrier. This is the sweet spot for residential soundproofing in London.

1.3 The Airtight Envelope: Twin-Compression EPDM Seals

Noise is like water; it will find the path of least resistance. Even the thickest glass is useless if sound can "leak" through the frame. Standard secondary units often use brush-pile seals, which are ineffective against high-frequency hiss. Our systems employ twin-compression EPDM seals — rubber gaskets that create a totally airtight perimeter, maintaining consistent pressure even as your original timber frames expand or contract with the London seasons.

2. Comparative Analysis: Performance Data

The following table synthesizes the performance of various glazing strategies. Note that decibels (dB) are measured on a logarithmic scale; a 10dB reduction is perceived by the human ear as a 50% decrease in noise.

Glazing Type	Typical dB Reduction	Target Frequencies	Best For
Original Single Sash	18 – 22 dB	None	Heritage aesthetics only
Standard Double Glazing	28 – 32 dB	Mid-range	Thermal insulation, not noise
Cheap Secondary (4mm)	32 – 35 dB	High-range	Light ambient noise
6.4mm Acoustic Laminate	38 – 42 dB	Mid-High	Side streets, quiet neighbourhoods
Specialist 10.8mm System	48 – 54 dB	Low-Mid-High	Sirens, buses, heavy traffic

Data source: Independent laboratory testing and British Standards Institution (BSI) EN ISO 10140.

3. Why Secondary Glazing for Sash Windows is the Professional Verdict

For those living in Grade I or Grade II listed buildings, the choice is often made for them by legislation. However, even when replacement is an option, secondary glazing remains the superior acoustic choice for three key reasons:

1. Preservation of Heritage Value: You retain your original, hand-crafted timber sashes, maintaining the historical integrity and market value of your property.
2. Superior Cavity Depth: A standard double-glazing unit cannot accommodate a 100mm air gap. By adding a secondary layer, you create a far more effective sound barrier than any single "soundproof" window replacement could offer.
3. Conservation Approval: We maintain a 100% conservation officer approval rate. Because our units are slimline and sit discreetly within the window reveal, they are regarded as a reversible internal modification rather than a permanent structural change.

4. Case Study: The "Silent Sanctuary" in Westminster

A client in a Victorian townhouse near Victoria Station reported that sleep was "impossible" due to the constant sirens and delivery trucks. The original sashes were in excellent condition but offered no protection.

The Intervention: We installed a bespoke system featuring 10.8mm acoustic laminate glass with a 120mm air gap, finished in a custom RAL colour to match the existing timber.

The Verdict: Post-installation acoustic testing showed a drop in peak noise levels from 72dB (heavy traffic) to 24dB (the level of a whisper). The homeowner described the result as "transformative," stating that the city outside now looks like a "silent movie."

5. Actionable Guidance: What to Ask Your Installer

When evaluating options for sash window secondary glazing, ensure you ask the following technical questions to avoid an underperforming investment:

• "What is the exact thickness of the laminate?" If they suggest anything less than 6.4mm for a London main road, the performance will be insufficient. Demand 10.8mm for heavy traffic.
• "How deep will the air gap be?" If they suggest fitting it as close as possible to the original window, they are prioritizing aesthetics over acoustics. Insist on at least 100mm.
• "What seals do you use?" Brush piles are for dust; EPDM compression seals are for sound.
• "Is there a warranty?" We provide a 25-year warranty, reflecting the durability of our industrial-grade components.

The Intelligent Investment in Tranquility

The human cost of noise pollution — sleep deprivation, increased cortisol levels, and diminished focus — is well-documented. Choosing the right secondary glazing for sash windows is not merely a home improvement project; it is an investment in your mental well-being and the long-term viability of your heritage home. By combining the massive density of 10.8mm laminate with a decoupled 150mm air gap, we don't just reduce noise; we restore the silence that your home was designed to provide.

Ready to reclaim your peace? Explore our heritage and listed building solutions or request a professional acoustic assessment today. Our specialists serve Kensington, Chelsea, Westminster, and the wider London area.
