Secondary Glazing for Georgian Townhouses in London: Heritage Preservation & Silence

Executive Summary

For owners researching secondary glazing for Georgian townhouses in London, the central challenge is not simply how to reduce noise. It is how to do so without compromising the architectural details that give the property its value and identity.

Georgian homes in Bloomsbury, Marylebone and Westminster are often defined by tall multi-pane sash windows, delicate astragal bars, timber mouldings, deep reveals and generous ceiling heights. Many are listed buildings or sit within conservation areas, making replacement double glazing unsuitable: or impossible: without harming historic fabric.

A carefully specified secondary glazing system offers a different route. It retains the original window as the primary architectural feature while adding a discreet, independent acoustic barrier internally. Our specialist configuration uses 10.8mm acoustic laminate glass, a precision 100–150mm air gap and twin-compression EPDM seals, delivering up to 54dB of city-noise reduction in suitable conditions.

The conclusion is clear: for a sensitive Georgian townhouse, secondary glazing is not a compromise. It is an intelligent conservation-led upgrade.

Why Georgian Townhouses Present a Special Acoustic Challenge

1.1 The window as the weakest point

A Georgian townhouse may have substantial brick or stone walls, heavy internal doors and robust timber floors. Yet the original windows are usually constructed from relatively thin single glass within finely made timber sashes.

This creates an acoustic weakness. Road traffic, sirens, buses, construction activity and late-night pedestrian noise can enter primarily through the glazing rather than through the masonry envelope.

The problem is intensified by Georgian architecture:

• Tall sash windows provide a large surface area for sound transmission.
• Six-over-six or similar multi-pane layouts contain numerous joints and glazing-bar interfaces.
• Slim timber sections cannot easily accommodate modern sealed double-glazed units.
• High ceilings may increase reverberation, making intrusive noise feel more prominent.
• Deep reveals and internal shutters require a bespoke installation strategy rather than a standard off-the-shelf frame.

For residents, the consequences are practical and human. Sleep is interrupted, concentration deteriorates and the home ceases to feel like a sanctuary. Noise becomes a persistent intruder rather than an occasional inconvenience.

The Heritage Principle: Preserve, Do Not Replace

Historic England describes secondary glazing as a fully independent internal window installed on the room side of the existing window. When properly designed, it allows original windows to remain in place and is generally reversible.

This principle is particularly important in Georgian townhouses, where the original joinery may be a character-defining feature.

Replacement double glazing often requires:

• Removing historic sashes
• Altering or enlarging timber sections
• Replacing original glass
• Disturbing astragal bars and putty lines
• Changing the external appearance of the elevation
• Cutting into or covering timber mouldings and shutters

Secondary glazing takes the opposite approach. The original sash window remains visible and operational, while the new acoustic unit is positioned behind it.

Read our specialist guide to secondary glazing for listed buildings for a fuller explanation of reversibility, fixing details and documentation.

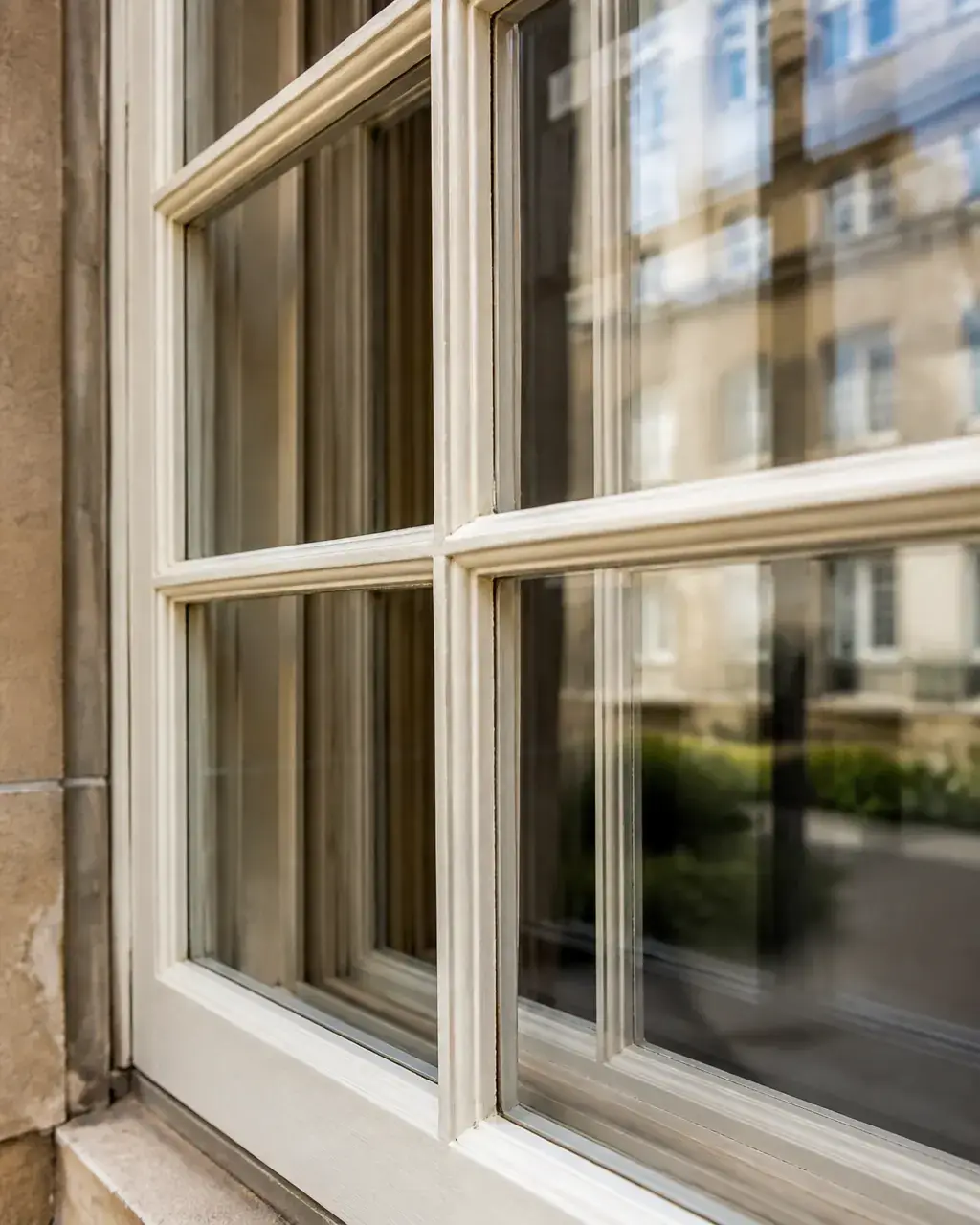

2.1 Protecting astragal bars and timber mouldings

Astragal bars: the narrow glazing bars separating individual panes: are among the most delicate elements of a Georgian window. They can be visually fine, structurally vulnerable and historically significant.

A conservation-sensitive secondary glazing installation should:

• Avoid fixing through original astragal bars
• Avoid cutting into historic sash boxes and mouldings
• Use the reveal or an independent subframe for secure fixing
• Be measured to the opening rather than trimmed aggressively on site
• Match the internal finish to the existing joinery
• Preserve access for future sash maintenance

The result is a modern acoustic envelope that remains visually subordinate. From within the room, the original window continues to define the character of the space.

The Acoustic Specification

The effectiveness of secondary glazing depends on the interaction of mass, separation and airtightness. These are the three pillars of the system.

3.1 Mass: 10.8mm acoustic laminate glass

Our acoustic specification uses 10.8mm acoustic laminated glass, incorporating a viscoelastic PVB interlayer. In straightforward terms, the glass provides substantial mass while the interlayer dampens vibration.

A standard pane can behave like a drum skin when struck by sound energy. Acoustic laminate glass behaves more like a damped panel: it still receives the energy, but the interlayer reduces the intensity with which it vibrates and retransmits it.

This is especially relevant to urban noise, which contains a mixture of frequencies. The specification is designed to address speech, sirens, traffic and some of the lower-frequency content associated with buses and heavy vehicles.

3.2 Separation: the 100–150mm air gap

The gap between the original window and the new secondary pane is not an incidental detail. It is the mechanism that creates decoupling.

In a conventional double-glazed unit, the panes are separated by a relatively narrow sealed cavity. With secondary glazing, the independent internal pane can be positioned much farther from the original glass. Our precision target is 100–150mm, subject to the geometry of the room and window reveal.

This wider distance interrupts the mass-air-mass transmission path. The two panes are less likely to vibrate together, much like placing space between two musical instruments prevents one from directly exciting the other.

3.3 Airtightness: twin-compression EPDM seals

Even an excellent glass specification can underperform if sound leaks around the perimeter. Small gaps allow airborne noise to bypass the glass entirely.

Our systems use twin-compression EPDM seals to create a continuous, airtight acoustic envelope. EPDM is a durable elastomer selected for its resilience, weathering resistance and ability to maintain compression over time.

The following table synthesises the key specification:

Component	Specification	Acoustic purpose
Acoustic glass	10.8mm laminated glass with PVB interlayer	Adds mass and dampens vibration
Air cavity	100–150mm precision gap	Decouples the two glazing layers
Perimeter seal	Twin-compression EPDM	Limits sound leakage around the frame
Primary window	Original Georgian sash retained	Preserves historic fabric and appearance
Potential performance	Up to 54dB reduction	Reduces traffic, siren and urban noise

Decibel figures are logarithmic rather than linear. A reduction of several decibels can therefore produce a substantial perceptual improvement, although actual performance depends on the complete room envelope, installation quality, window condition and external noise spectrum.

For a more detailed explanation, see our London Noise Reduction Guide.

Conservation Officer Compliance

4.1 Approval is about method, not marketing

No glazing intervention should be described as automatically acceptable in every listed building. The local planning authority, listing description and significance of the individual property remain relevant.

However, reversible internal secondary glazing is widely recognised as a lower-impact approach because it can retain original windows and avoid alterations to the external elevation.

In sensitive Georgian properties, a conservation officer will typically want reassurance about:

• Whether historic fabric will be removed or damaged
• Where fixings will be located
• Whether shutters, panelling or mouldings will remain accessible
• How visible the secondary frame will be
• Whether the installation can be removed in future
• Whether the proposal changes the building’s character

Our process addresses these matters through measured drawings, product specifications, fixing details and a reversibility statement. The company maintains a 100% conservation officer approval rate for its submitted listed-building projects, although the final decision always rests with the relevant authority.

Where your property is listed, contact the local authority before work begins. Historic England’s guidance on modifying historic windows is a useful starting point.

4.2 A discreet internal finish

Georgian interiors often contain shutters, panelled reveals and carefully proportioned mouldings. The secondary frame should therefore be designed around the architecture rather than imposed upon it.

Possible design considerations include:

• Slim internal sightlines
• Heritage-compatible paint or powder-coated finishes
• Hinged, sliding or lift-out access where appropriate
• Alignment with the existing meeting rail
• Independent subframes in irregular or highly decorated reveals
• Clearance for curtains, shutters and cleaning

The objective is not to make the original window disappear. It is to allow the historic window to remain the visual focal point while the acoustic system operates quietly in the background.

Real-World Transformation

Consider a Georgian townhouse in Westminster overlooking a busy route. The original sash windows are beautiful but admit a continuous mixture of taxis, buses, sirens and late-night activity.

After installation, the transformation is not merely technical. The room changes function:

• A bedroom becomes usable without relying on earplugs.
• A drawing room becomes suitable for conversation.
• A study supports sustained concentration.
• Curtains and furniture can be used for design rather than as an attempt to absorb noise.
• The property feels like a refuge again, even though the city remains immediately outside.

This is the moment the specification becomes tangible: the chaotic exterior is still present, but it is no longer in command of the interior environment.

The Long-Term Evaluation

Secondary glazing also provides benefits beyond acoustic control:

• Reduced draughts around the window opening
• Improved thermal comfort
• Lower heat loss through the glazing area
• Additional protection for original glass and joinery
• Reduced risk of condensation when correctly designed and ventilated
• A reversible alternative to permanent window replacement

The acoustic performance remains the primary reason many Georgian homeowners commission the work. Nevertheless, the combined benefit makes the investment more defensible: one carefully designed intervention supports comfort, heritage stewardship and long-term property usability.

Premium and heritage specifications are backed by a 25-year warranty, with warranty length depending on the selected package. This reflects the expectation that a properly specified installation should provide durable service rather than a short-term cosmetic improvement.

Actionable Guidance for Georgian Homeowners

Before requesting a quotation, prepare the following information:

1. Confirm whether the property is listed and identify its grade.
2. Check whether it lies within a conservation area.
3. Record the rooms most affected by noise, particularly bedrooms and studies.
4. Note the main noise sources and their timing.
5. Photograph the original sash windows, mouldings, shutters and reveals.
6. Ask whether fixings will avoid original timber and significant decorative fabric.
7. Request the proposed glass specification and air-gap dimension.
8. Confirm the warranty, acoustic assessment method and installation sequence.
9. Discuss ventilation and condensation management.
10. Obtain written advice on whether local consent or notification is required.

The residential secondary glazing service explains how survey, design, manufacture and installation are managed as one process.

Verdict: A Quiet Upgrade with Architectural Discipline

For owners of Georgian townhouses in Bloomsbury, Marylebone, Westminster and surrounding London districts, the choice is not between heritage and comfort.

With the right specification, secondary glazing for Georgian townhouses in London can preserve tall sash windows, protect astragal bars and timber mouldings, and create a measurable acoustic barrier capable of reducing city noise by up to 54dB.

Secondary Glazing Noise Reduction is London’s only dedicated specialist focused exclusively on acoustic secondary glazing. Our combination of conservation expertise, 10.8mm acoustic laminate glass, 100–150mm precision air gaps, twin-compression EPDM seals, a 100% conservation approval rate and warranty terms that vary by selected package, with 25 years available on premium and heritage specifications, provides a predictable, evidence-led route to a quieter home.

Book a free acoustic survey to assess your Georgian windows, noise exposure and conservation requirements.

Service area	London, including Bloomsbury, Marylebone and Westminster
Acoustic performance	Up to 54dB noise reduction
Glass specification	10.8mm acoustic laminate
Air gap	Precision 100–150mm
Sealing system	Twin-compression EPDM
Warranty	Varies by package; up to 25 years on premium and heritage specifications
Conservation record	100% approval rate for submitted projects
